Wlkata E4 Robotic Arm Kit - Desktop Modular 4-Axis Robotic Arm

$820.00
& Free Shipping over $69* Exclusions Apply
SKU: 232115
  • It is assembled by students themselves, providing hands-on understanding of industrial robotic arm structure
  • Fully programmable through the WLKATA Studio and WLKATA BlockFactory to achieve pick-and-place, palletizing items, and drawing
  • Equipped with industrial-grade soft gripper, suction cup, pen holder and more
Adding to cart… The item has been added

Details

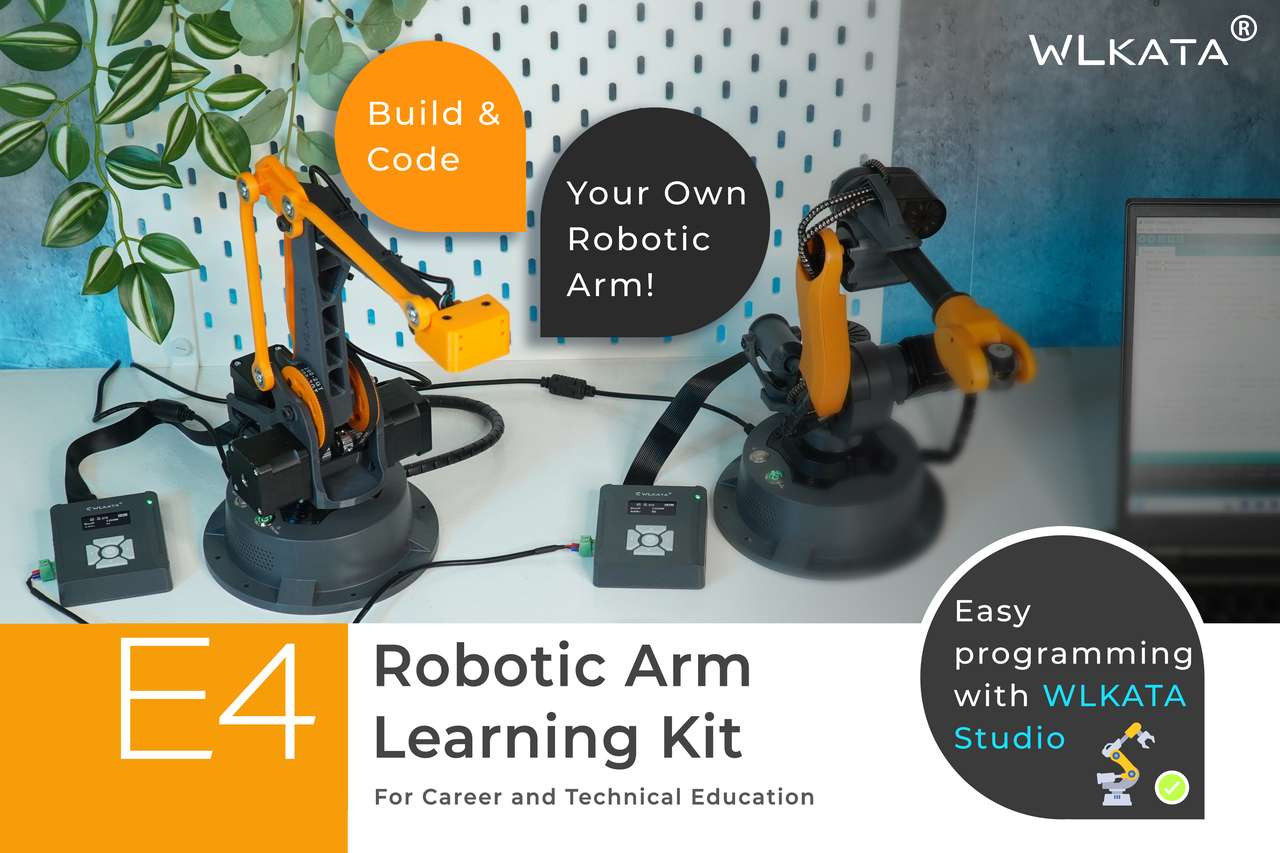

The WLKATA E4 Robotic Arm is a modular, highly interactive, and accessible educational tool designed to inspire young STEM learners. It is a desktop-sized, 4-axis robotic arm that provides hands-on learning experience for students. Its modularity not only facilitates a deep comprehension of the structure of typical industrial robotic arms through the assembly process but also promotes problem-solving and mechanical skills.

Once assembled, the robotic arm is fully programmable via WLKATA Studio and WLKATA BlockFactory. This capability allows students to code the arm to perform an array of tasks, such as pick-and-place operations, palletizing items, and drawing, sparking innovation and a broad understanding of automation.

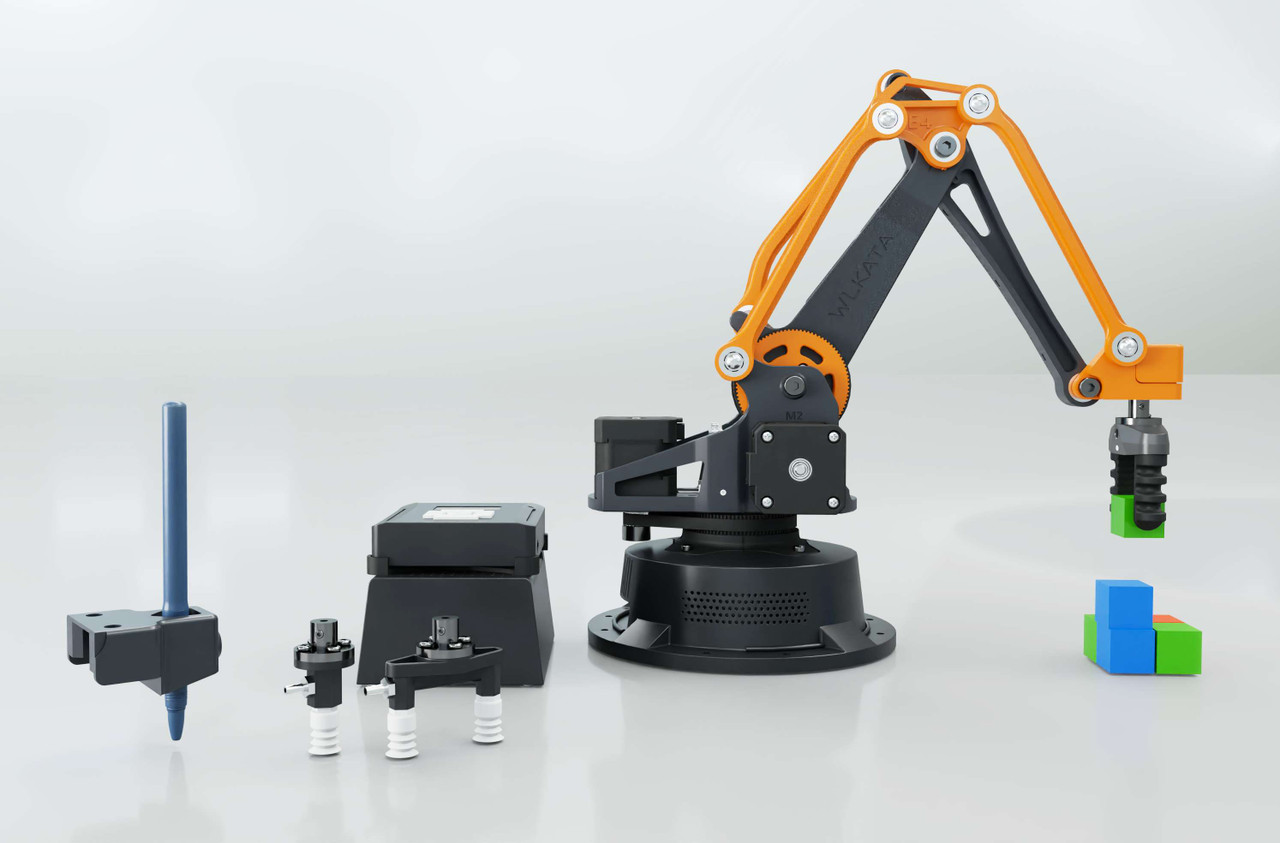

Moreover, the E4 arm features easily interchangeable end effectors, which expand its functionality and application. It offers students a tangible way to explore different robotic scenarios, enhancing their learning journey by providing a realistic introduction to the industrial automation world. The WLKATA E4 Robotic Arm is not only an exciting educational tool but also a powerful vehicle for fostering a future generation of engineers and roboticists.

Modular Design and 3+1 Dof Professional Performance :
??Modular DIY assemble
??3+1 Degrees of Freedom
??0.2mm Repeatability;
??Joints using high accuracy stepping motor with reducer

Easily Programming:
?? WLKATA Studio (graphic programming, teach and play, G-code, Python)
?? WLKATA Blockfactory (Graphic programming, ideal for programming multi-robotic arms)

Friendly To Makers:
Similar to the WLKATA Mirobot, the firmware of WLKATA E4 is based on Arduino. It is open sourced and support customizable APIs, RS485, Bluetooth and WiFi. So that users can operate through serial over USB and e.g., customize their own controller.

??Compatible with PLC RS485, WIFI, Bluetooth
??Open APIs for any level of customization support
??ROS, Matlab, V-Rep, Python SDK and more

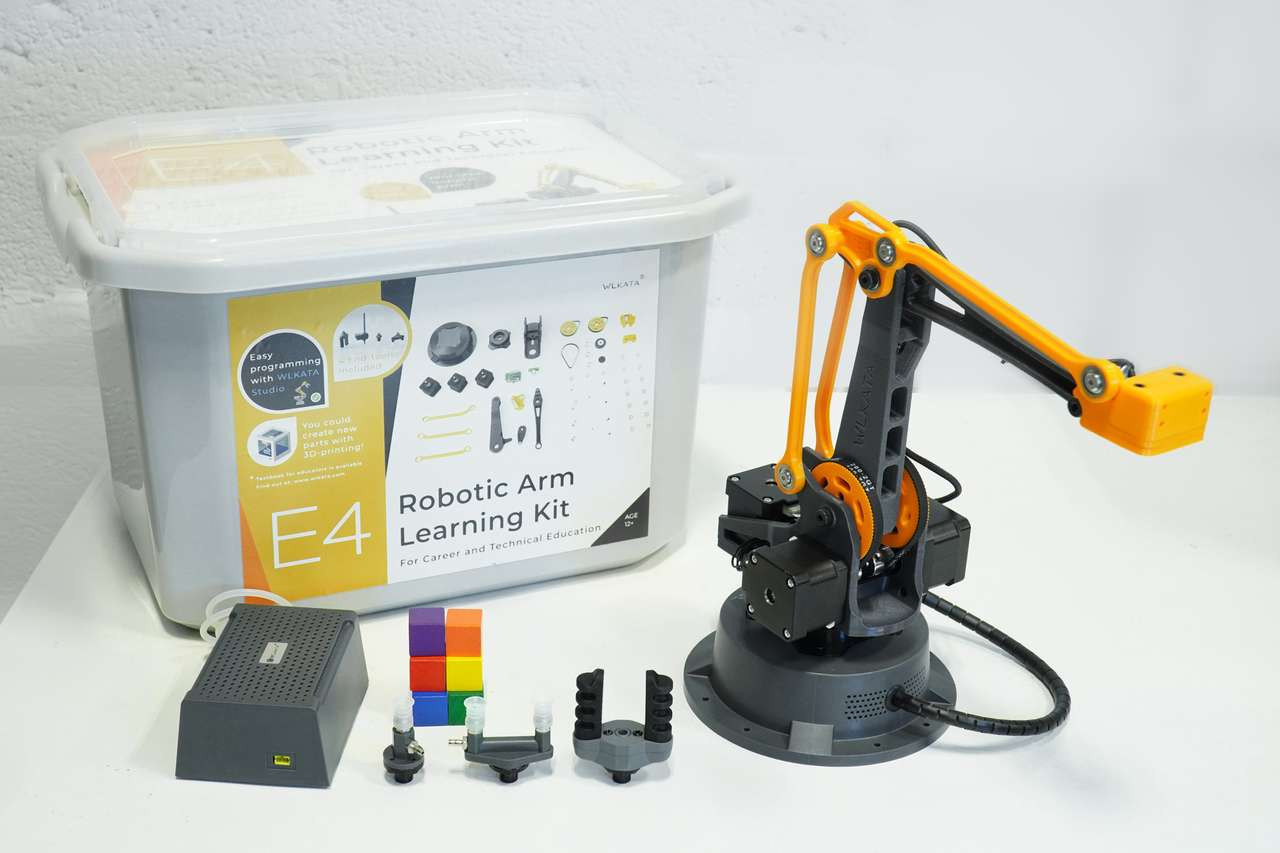

This kit includes:
WLKATA E4 Robotic Arm Kit X 1

What Is In The WLKATA E4 Robotic Arm Kit:

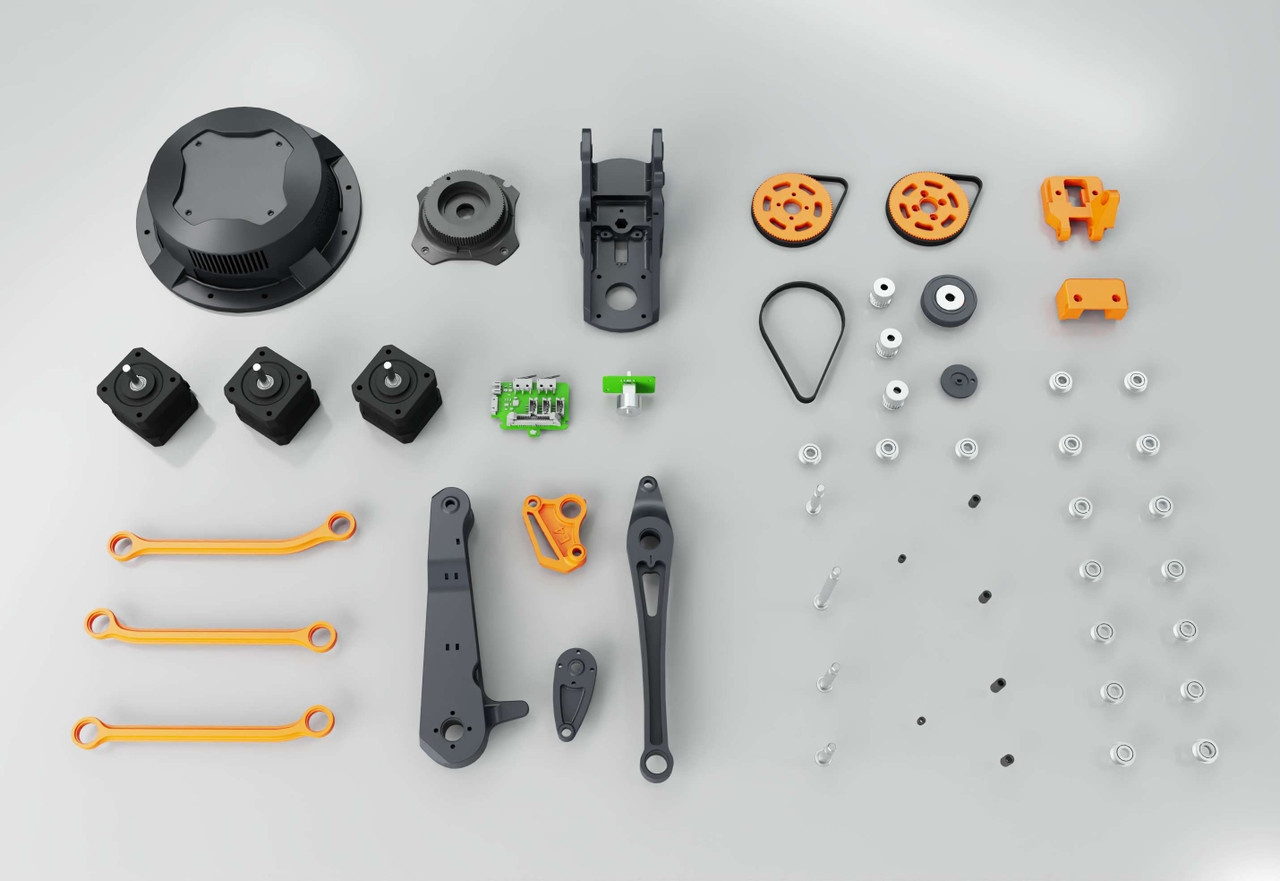

1. Assemble Parts of E4 X 1
2. Power supply & high-speed USB cable & IDC cable X 1
3. Pen holding X 1
4. Micro servo gripper module X 1
5. Pneumatic set (Including pneumatic box, suction cup, two-finger gripper, two-finger soft gripper) X 1
6. Multifunctional box ( Extension Module )X 1
7. Handbook X 1

Specifications
