Spectrometer Advanced

$811.63
& Free Shipping over $69* Exclusions Apply
SKU: 225954
  • Advanced Spectrometer with prism and grating holder. This optical instrument can be used to determine the wavelength of light as well as the index of refraction of solids and liquids.
  • Stored in polished wooden case.
  • Supplied WITHOUT prism.
Adding to cart… The item has been added

Details

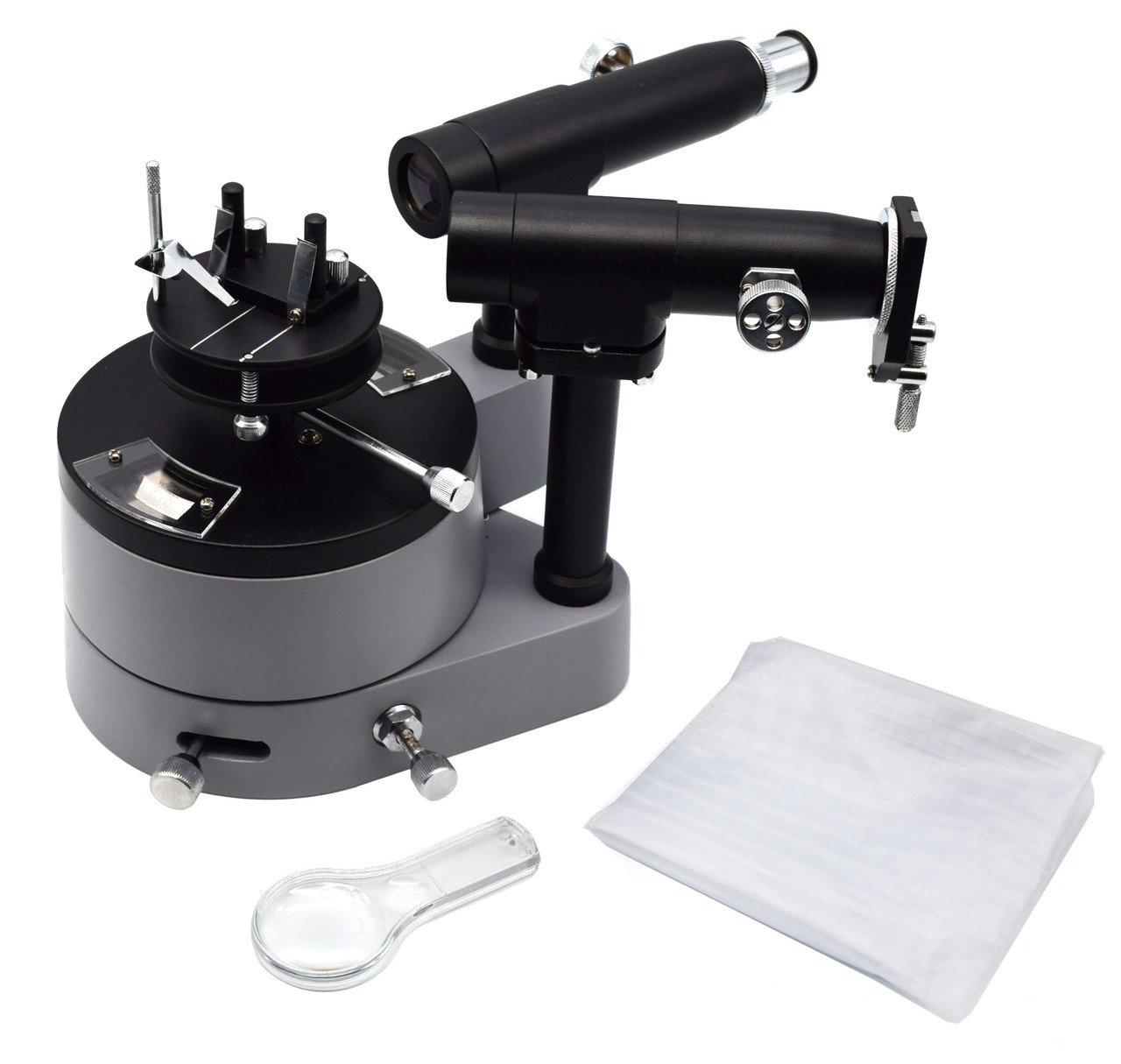

Spectrometer Advanced



  • Scale: The 150 mm diameter circle with a protective plastic shield is fixed to the telescope movement and the table is attached to the double-ended vernier which reads 30 seconds of the arc. Both the telescope and table rotations have fine adjustment screws, and the release of a clamping screw enables adjustments of both movements to be made by hand.

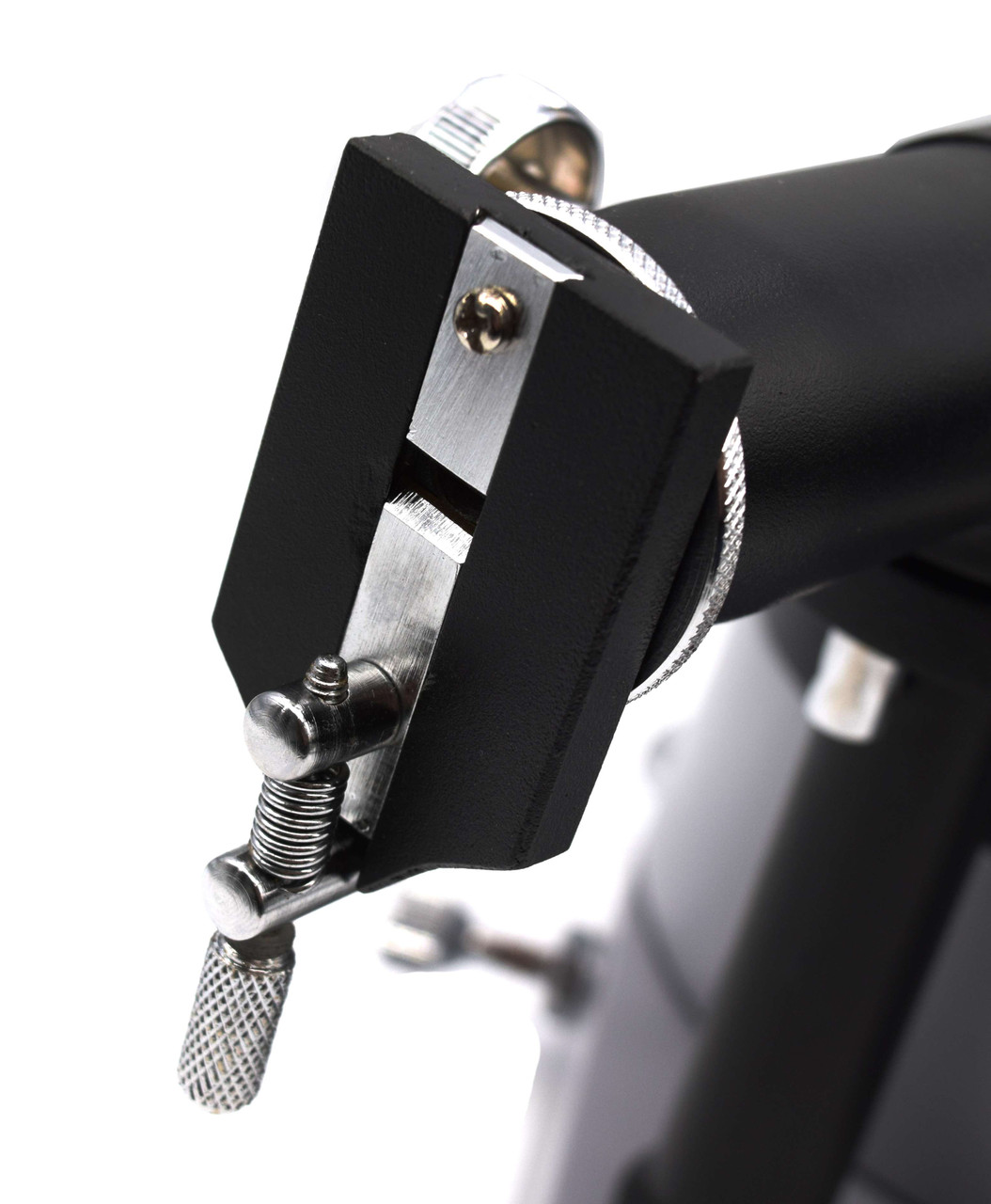

  • Collimator: Mounted on fixed pillar and fitted with 178 mm focus, 32 mm achromatic objective with 28 mm clear aperture. Also fitted is a unilaterally adjustable slit 7 mm long.



  • Telescope: Mounted on a moveable pillar and fitted with 178 mm focus, 32 mm achromatic objective with 28 mm clear aperture. Also fitted is a 10x Ramsden eyepiece and a glass cross-line graticule. Both the telescope and the collimator have rack and pinion focusing.



  • Prism table: The table is marked with lines to assist in placing the prism with respect to the table leveling screws.



  • Mass: 11 Kg.



Standard accessories supplied:

  • 1 prism clamp
  • 1 diffraction grating holder
  • 1 magnifier bi-focal (PH0509)
  • 1 tommy bar for adjusting optical axes
  • 1 plywood case



Comprehensive setting-up instructions are also provided. Supplied WITHOUT prism.
