Multi-Range Demonstration Meter Set - Includes Range Box, 3 Interchangeable Scales, Leads - For Studying Working Principle of AC/DC Ammeter & Voltmeter

$237.97
& Free Shipping over $69* Exclusions Apply
SKU: 225878
  • A magnetically clamped, spring-controlled moving coil movement is housed in a plastic case with Perspex front and rear panel. Accuracy of +/- 2.5%
  • Three interchangeable plastic scales with bold markings
  • Extended range box for voltage (DC: 5V, 10V / AC: 10V, 50V, 250V) and current (DC: 10mA, 100mA, 1A, 5A / AC: 1A, 5A)
Adding to cart… The item has been added

Details




Multi-Range Demonstration Meter Set - Includes Range Box, 3 Interchangeable Scales, Leads - For Studying Working Principle of AC/DC Ammeter & Voltmeter

• A magnetically clamped, spring-controlled moving coil movement is housed in a plastic case with Perspex front and rear panel. Accuracy of +/- 2.5%
• Three interchangeable plastic scales with bold markings
• Extended range box for voltage (DC: 5V, 10V / AC: 10V, 50V, 250V) and current (DC: 10mA, 100mA, 1A, 5A / AC: 1A, 5A)
• Includes 2 banana connecting leads and selector switch
• Great for classroom experiments in physics. Used to demonstrate the working principle of AC or DC ammeter and voltmeter

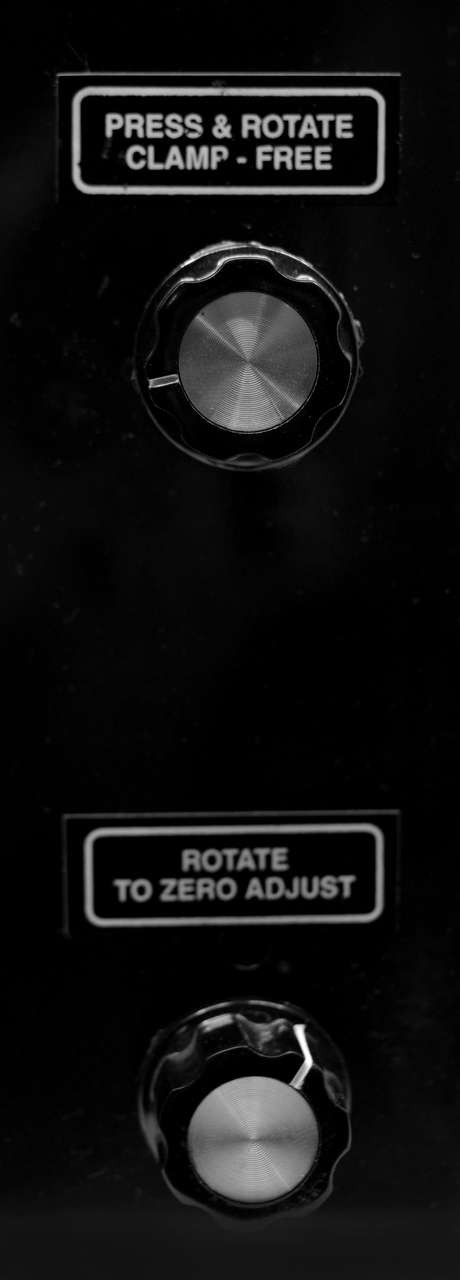

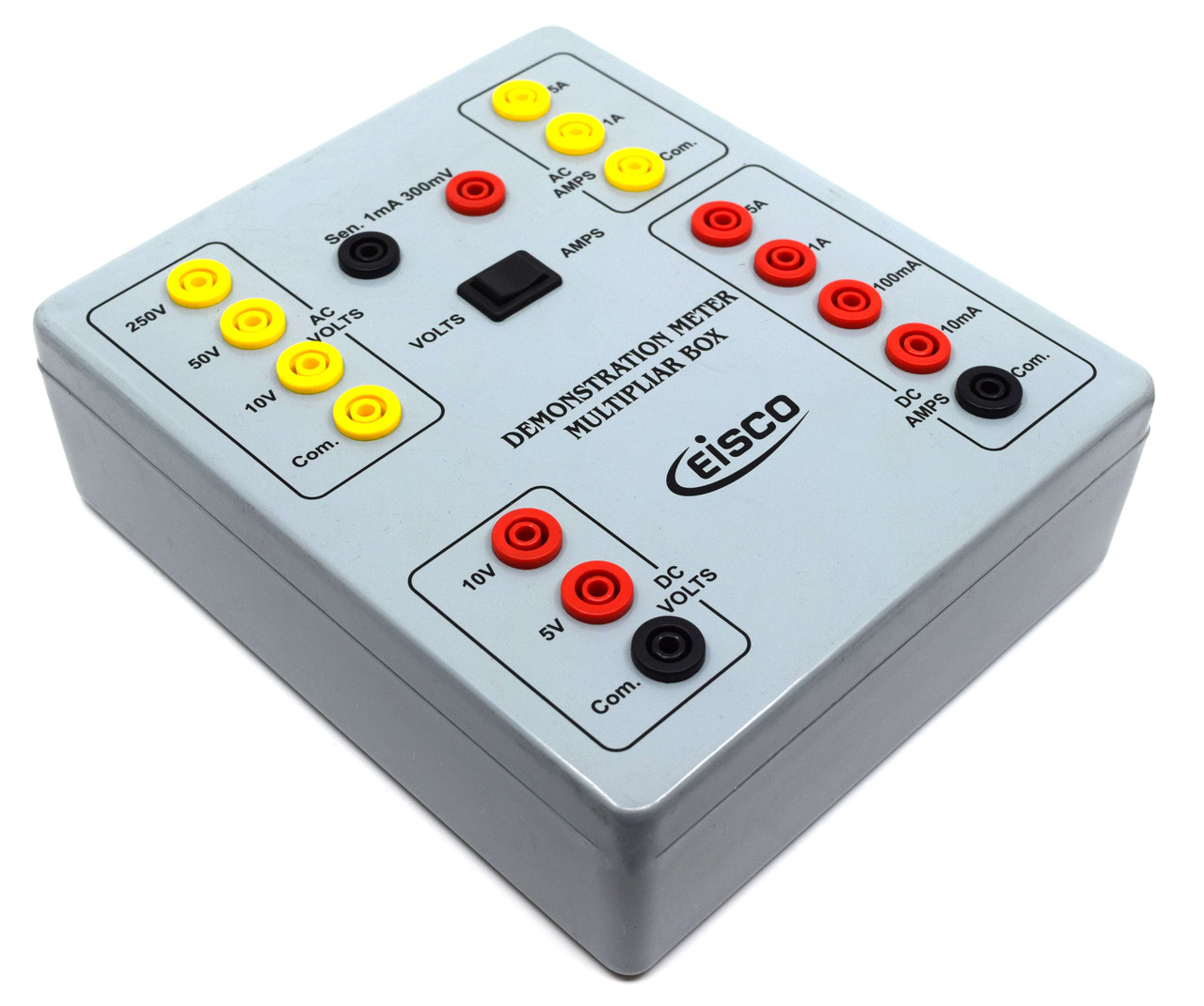

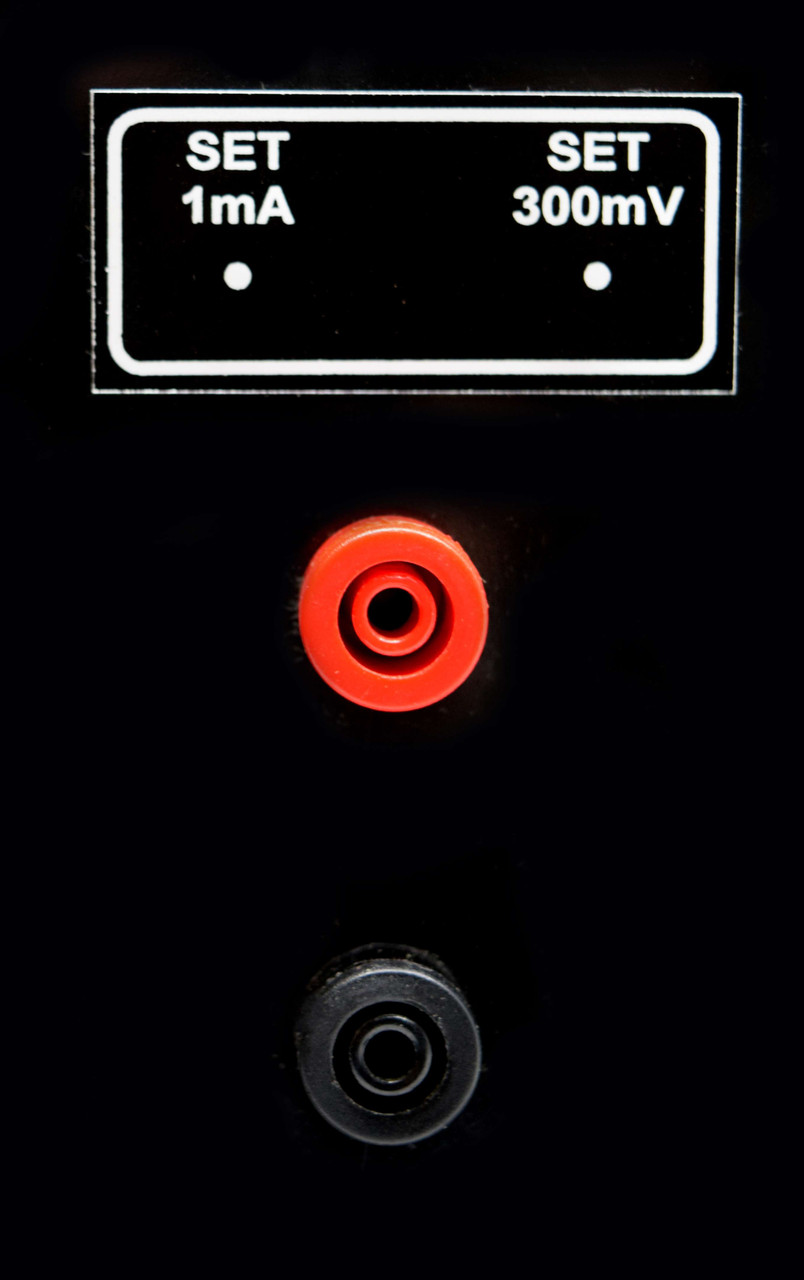

The Interscale Demonstration Meter is used to demonstrate the working principle of an AC or DC ammeter and voltmeter with the help of three interchangeable plastic scales. A magnetically clamped, spring-controlled moving coil movement is housed in a plastic case with a Perspex front and rear panel. The interchangeable scales are boldly marked. The basic sensitivity of the meter is 1 mA – 300 mV full-scale deflections. The demonstration meter includes an extended range box for voltage (DC: 5V, 10V / AC: 10V, 50V, 250V) and current (DC: 10mA, 100mA, 1A, 5A / AC: 1A, 5A). The box is provided with a selector switch for setting the proper range of volt and current, and a switch for selecting AC/DC mode. Includes three different scales:

- Scale 1: Dual scale 0-10 / 1-50. Use the following ranges from the multiplier box: 5V DC (read upper scale as half of the actual reading), 10V DC, 10mA DC, 100mA DC (read upper scale as 10X actual reading), 1A DC (read upper scale as 1/10 actual reading), 5A DC (read lower scale as 1/10 actual reading), 50V AC, 250V AC (read lower scale as 5X of actual reading)
- Scale 2: 0-10V AC only
- Scale 3: Dual scale 0-1A / 0-5A AC

The meter measures approximately 12" wide, 6" long, and 12.25" tall. The Selector Switch Box measures 6.75" wide, 8" long, and 2.25" tall. Banana clips measure 22" long, and each of the interchangeable scale plates measures 10.25" wide, and 4.5" tall. Includes instruction manual.
